In the further processing of wood-based materials, particle size, moisture content and fiber characteristics directly affect grinding performance. For wood chips, pre-crushed wood pieces and selected fibrous materials that require further size reduction, an ultrafine grinding system can combine continuous grinding, pneumatic conveying, classification and collection to produce a finer and more consistent powder.

Figure 1  Wood chip samples in different colors and forms

Why Fine Grinding Is Needed

Wood chips are generally light, fibrous and irregular in shape. After suitable pretreatment and fine grinding, they can provide more uniform material for composite products, fillers, biomass utilization and other industrial applications. Metal, stones and other foreign matter must be removed before processing. Oversized feed should be reduced by a coarse crusher first.

How the Ultrafine Grinding System Works

The feeding unit delivers material steadily into the grinding chamber. After size reduction, the airflow carries the particles to the classification section. Particles that meet the selected fineness pass to the cyclone and dust collection system, while coarser particles remain in circulation for further grinding. This process helps improve the consistency of the finished powder.

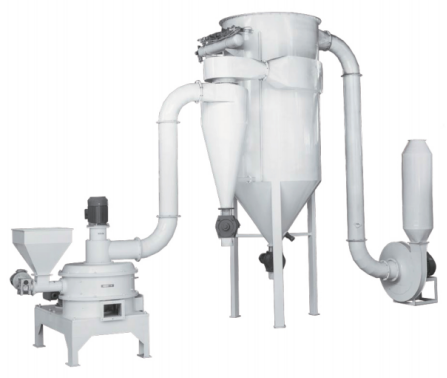

Figure 2  Ultrafine pulverizer with classification and collection system

Information Required Before Selection

· Type of wood material and fiber characteristics

· Feed size and existing pre-crushing process

· Moisture content

· Target fineness or particle size range

· Required capacity per hour

· Final application and material-contact requirements

Wood species differ greatly in hardness, toughness, moisture and fiber structure. Therefore, a suitable configuration cannot be selected from the term “wood chips” alone. A sample test is recommended so that the grinding result, output and temperature rise can be evaluated before the final configuration is confirmed.

Conclusion

For manufacturers seeking finer and more uniform wood powder, an ultrafine pulverizer can be considered for the fine-grinding stage. Send us the material name, feed size, moisture content, target fineness and required capacity for a tailored recommendation.
