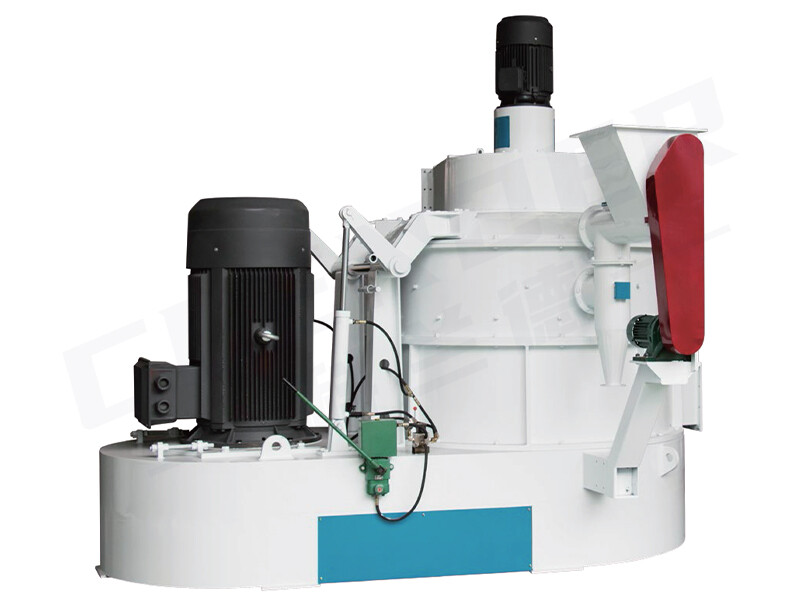

The machine is composed of main engine,cyclone separator,pulse dust collector,high pressure fan and electronic control box.This machine is suitable for crushing pesticides,chemical industry,feed,processing of agricultural and sideline products and other industries.
Main technical parameter:
Model (KLD)
| Diameter of the crushing disc (MM)
| Yield (KG/H)
95% 3000-60 | Main motor (KW)
| Fan motors (KW)
| Extension motor (KW)
| Feed into the motor (KW)
| Turn off the wind turbine (KW)
| Dimensions (Length*width*height) (MM)
|
110-110 | 1100 | 10000-1050 | 110 | 45 | 11 | 1.5 | 1.5+0.75 | 10000*4000*5200 |
110-132 | 1100 | 12000-1200 | 132 | 45 | 11 | 1.5 | 1.5+0.75 | 10000*4000*5200 |
130-132 | 1300 | 14000-1800 | 132 | 55 | 11 | 1.5 | 1.5+0.75 | 11000*4000*5200 |
130-160 | 1300 | 16000-2100 | 160 | 55 | 11 | 1.5 | 1.5+0.75 | 11000*4000*5200 |
150-160 | 1500 | 18000-2600 | 160 | 55 | 18.5 | 1.5 | 1.5+0.75 | 12500*6500*6500 |
150-200 | 1500 | 20000-3000 | 200 | 55 | 18.5 | 1.5 | 1.5+0.75 | 12500*6500*6500 |
170-220 | 1700 | 25000-3600 | 220 | 75 | 18.5 | 1.5 | 1.5+0.75 | 14000*7500*7500 |
